Product Overview
The MikroTik CCR2116-12G-4S+ is a powerful next-generation Cloud Core Router designed to eliminate CPU bottlenecks and deliver unmatched performance for ISPs, enterprises, and data-intensive networks. Featuring the Amazon Annapurna Labs Alpine AL73400 16-core 2 GHz CPU, it delivers at least 15% higher single-core performance compared to other CCR models, ensuring smooth handling of heavy tasks such as large BGP routing tables, complex firewall rules, QoS configurations, and dynamic routing.

Equipped with 4× 10G SFP+ ports and 12× Gigabit Ethernet ports, the CCR2116 offers flexible connectivity. Each group of Gigabit ports and the SFP+ ports connect via dedicated full-duplex lines to the Marvell Aldrin switch chip, while one Gigabit port connects directly to the CPU for efficient management without bottlenecks.

With 16 GB DDR4 RAM, 128 MB NAND storage, redundant power supplies, and a classic white 1U rackmount chassis, the CCR2116 combines reliability, stability, and enterprise-grade performance. It also supports CCR2004-1G-2XS-PCIe expansion for additional functionality.

Key Features

• CPU Power: Amazon Annapurna Labs Alpine AL73400, 16-core 2 GHz ARM 64-bit processor
• Single-Core Performance: 15% faster than previous CCR models
• Memory & Storage: 16 GB DDR4 RAM, 128 MB NAND
• Connectivity: 12× Gigabit Ethernet ports, 4× 10G SFP+ ports
• Switch Chip: Marvell Aldrin family (98DX3255)
• Dedicated Management Port: 1G port connected directly to CPU
• Scalable: Compatible with 1× CCR2004-1G-2XS-PCIe expansion
• Redundancy: Dual-redundant power supply for uninterrupted uptime
• OS: RouterOS (License level 6)

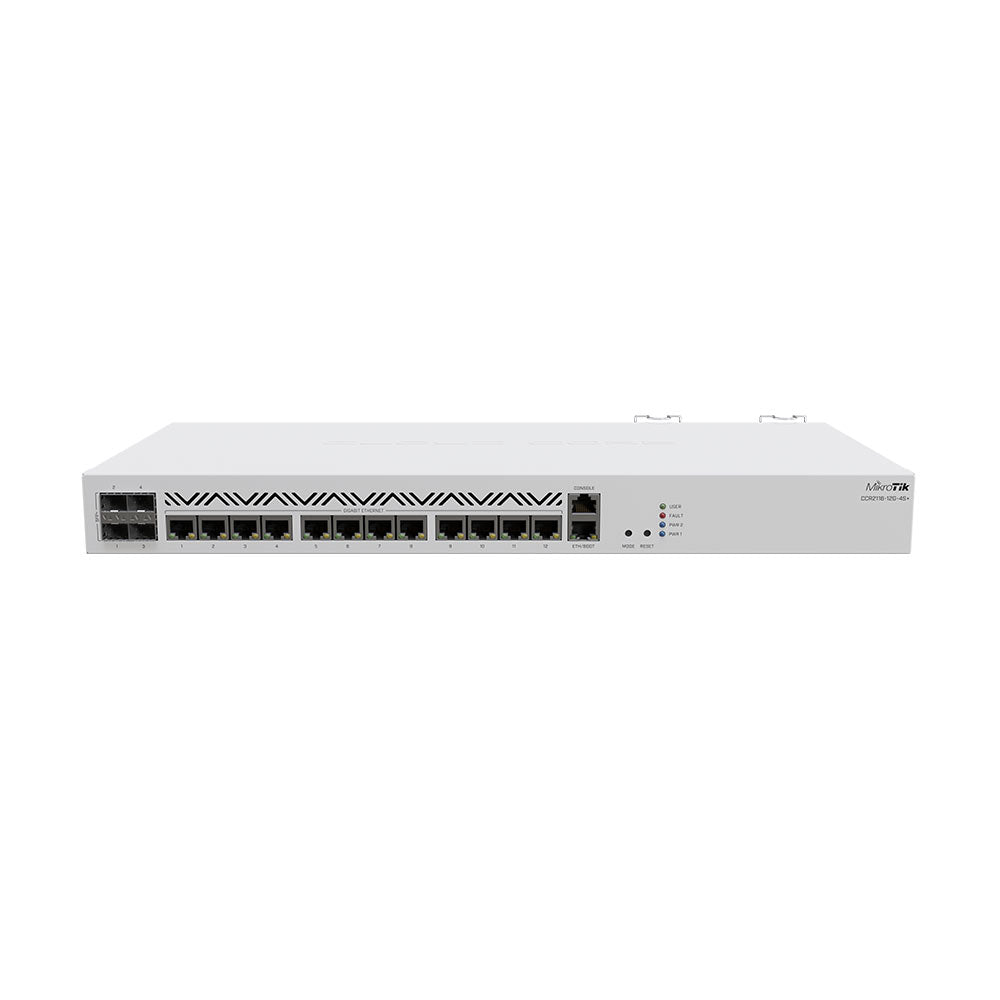

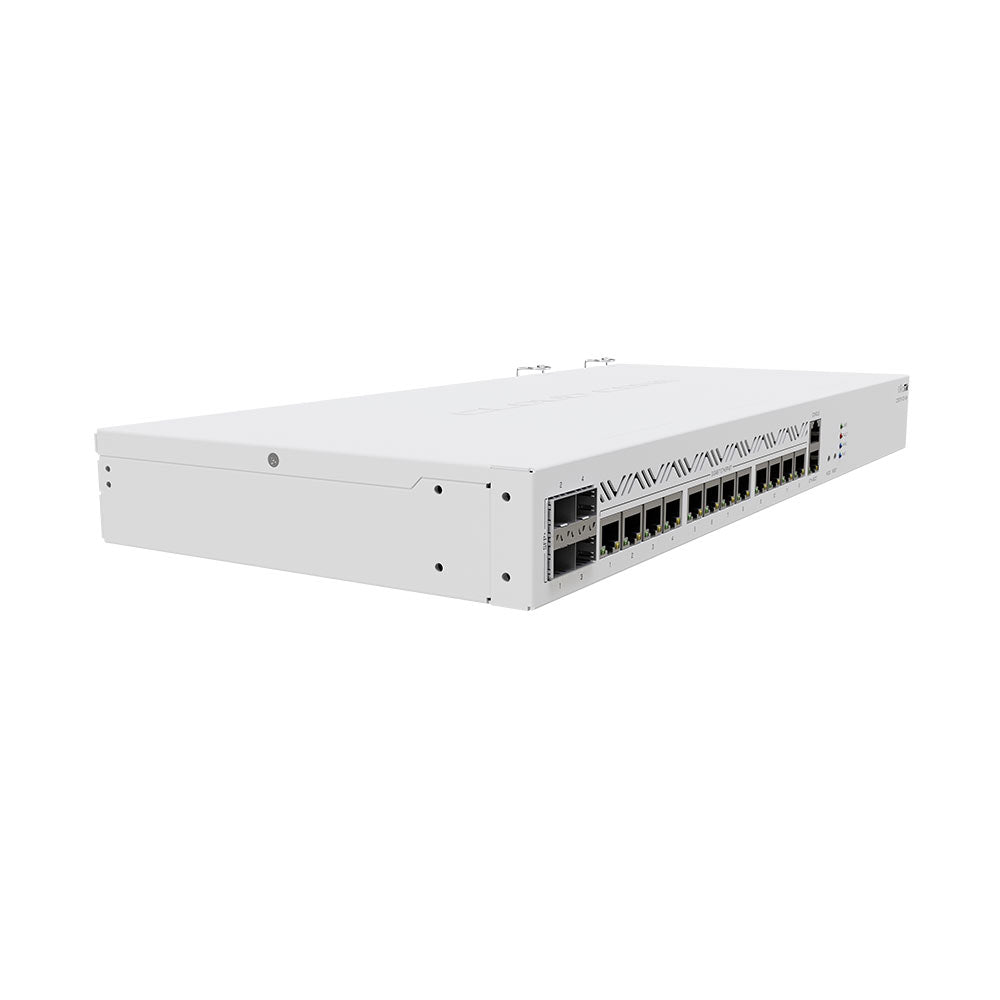

• Design: Classic 1U rackmount white case

Hardware Specifications

• Product Code: CCR2116-12G-4S+
• CPU: AL73400, 16-core, 2 GHz ARM 64-bit
• RAM: 16 GB DDR4
• Storage: 128 MB NAND
• Ethernet Ports: 13 × 1G (12 via switch chip, 1 direct to CPU)
• SFP+ Ports: 4 × 10G
• M.2 Slots: 1
• Switch Chip Model: 98DX3255
• Dimensions: 443 × 199 × 44 mm
• Operating Temperature: -20°C to +60°C

Powering

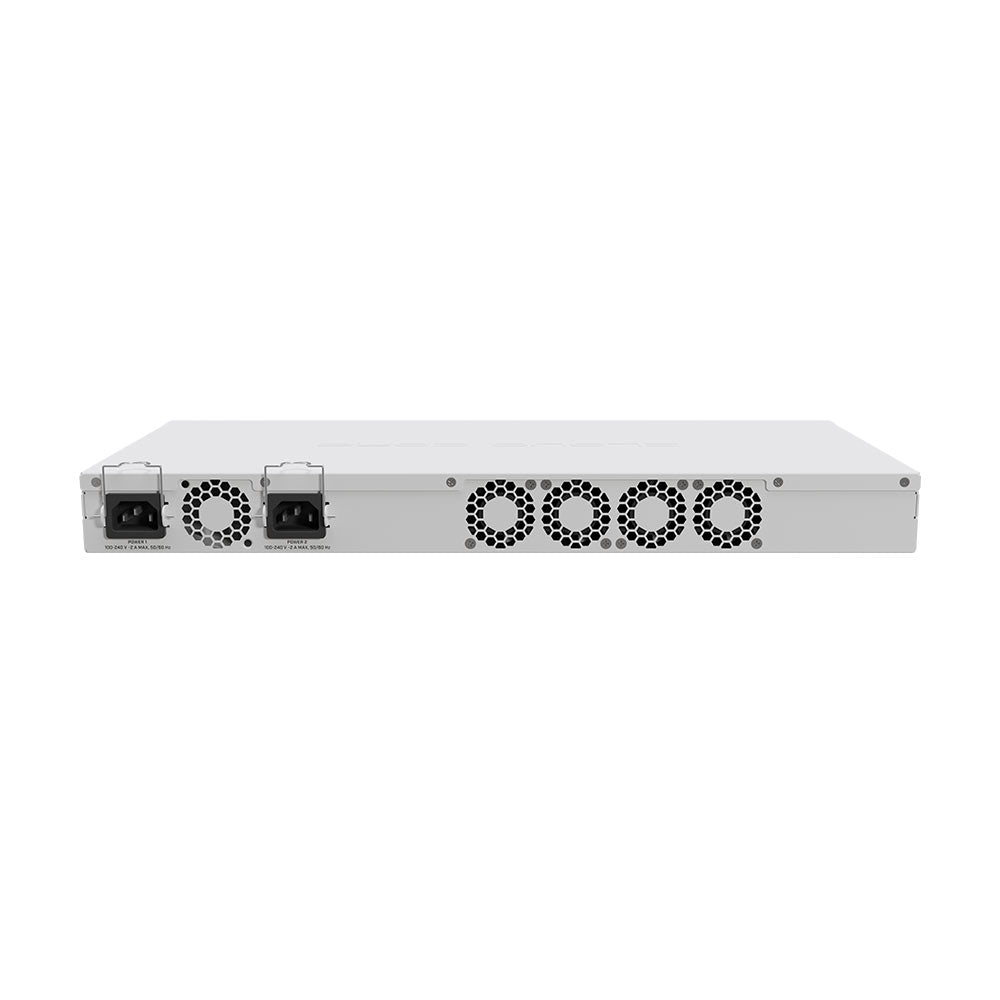

• Number of AC Inputs: 2 (dual-redundant)
• AC Input Range: 100–240 V
• Power Adapter Nominal Voltage: 12 V
• Power Adapter Nominal Current: 10.8 A
• Max Power Consumption (no attachments): 60 W
• Max Power Consumption (with attachments): 72 W
